Control Net Reduction Plots — plot.cpr

A collection of function for the inspection and evaluation of the control polygon reduction.

Usage

# S3 method for class 'cpr_cnr'
plot(x, type = "rse", from = 1, to, ...)

Arguments

x: a cpr_cnr object
type: type of diagnostic plot. "loglik" for the log likelihood by degrees of freedom, "rse" for residual standard error by model index
from: the first index of x to plot
to: the last index of x to plot
...: pass through

Value

a ggplot

Examples

initial_cn <- cn(log10(pdg) ~ btensor(list(day, age)
                        , df = list(10, 8)
                        , bknots = list(c(-1, 1), c(44, 53))
                        )
          , data = spdg)

cnr0 <- cnr(initial_cn)
#>
  |
  |                                                                      |   0%
  |
  |======                                                                |   9%
  |
  |=============                                                         |  18%
  |
  |===================                                                   |  27%
  |
  |=========================                                             |  36%
  |
  |================================                                      |  45%
  |
  |======================================                                |  55%
  |
  |=============================================                         |  64%
  |
  |===================================================                   |  73%
  |
  |=========================================================             |  82%
  |
  |================================================================      |  91%
  |
  |======================================================================| 100%

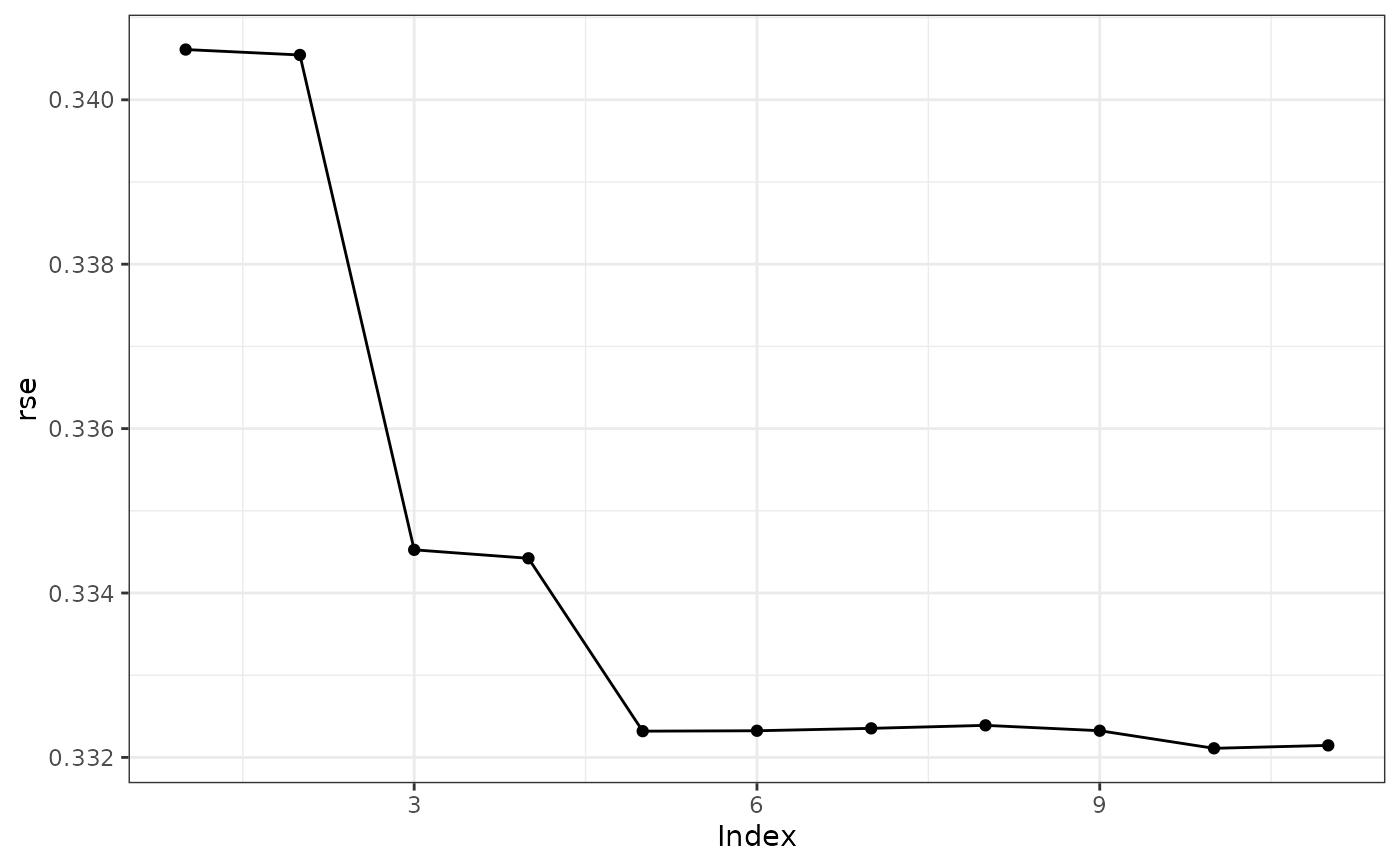

plot(cnr0)
